RDVision Laser Cutting Control Software Operation Manual
Suppose you want to processing ABC0001DEF repeatedly, ABC0002DEF, ABC003DEF until ABC9999DEF such
a set of serial number.

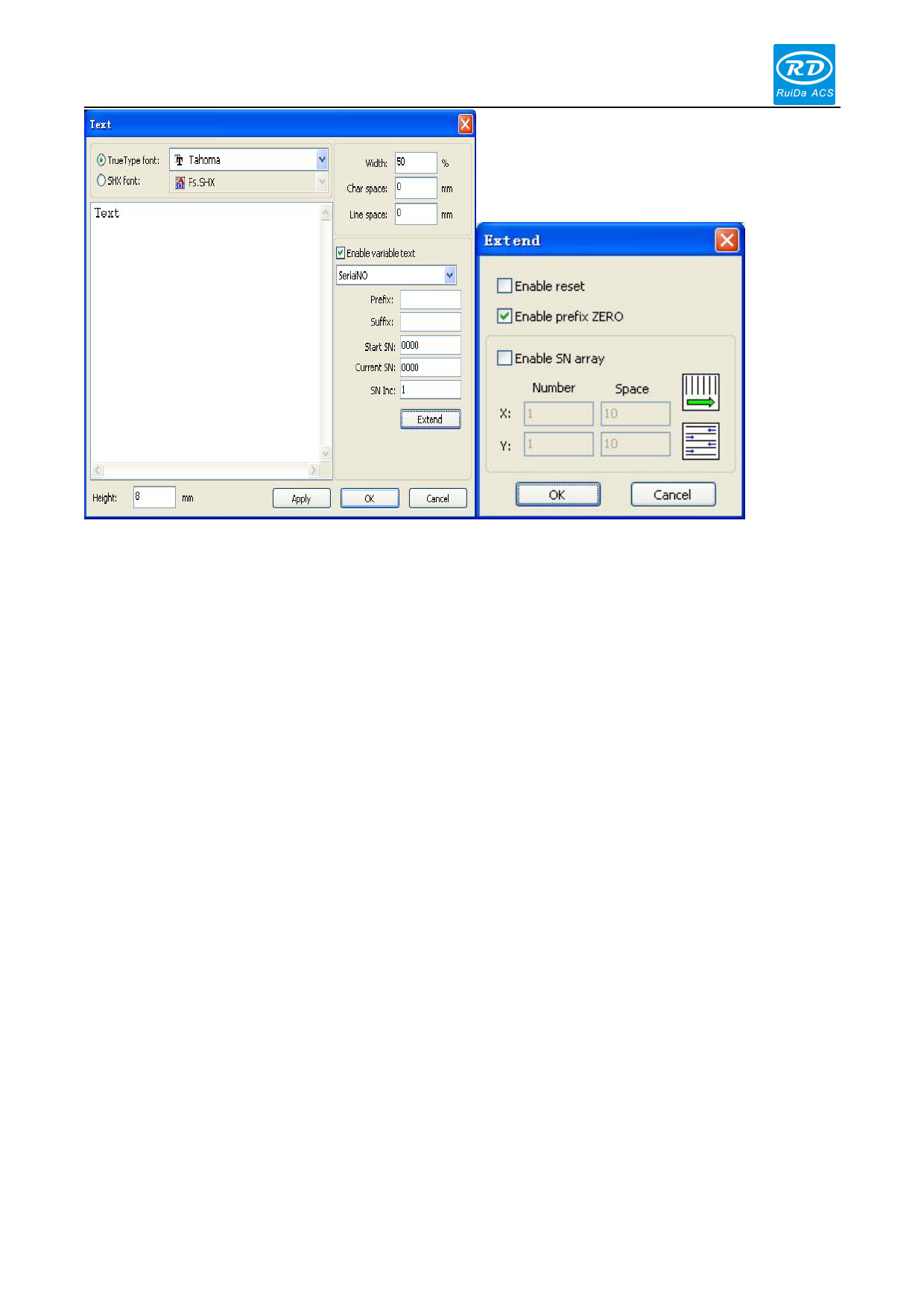

[Prefix]: serial number of prefix, ABC in the example is leading strings.
[Suffix]: serial number of suffix, DEF in the example is back leading strings.
[Start SN]: to specify from which serial number to start processing, case 0001 is the starting serial number.
[Current SN]: the current processing to which the serial number, can also be used to specify the current processing
which serial number. If when processing a set of serial Numbers, leaks, processing in one, can be processing, by
specifying the serial number instead of setting start serial number, because in some cases a set of serial number
requires repeated processing, namely to after a certain number, need to return to start serial number to start
processing.
[SN Inc]: to specify the serial number on the number of intervals. In the example, processing from 0001 to 9999 in
turn as serial number, the increment is 1. If you just need to output an even or odd number serial number, you can
set increment as 2.
[Enable reset]: when machining to reset the serial number, serial number will be automatically reset to the current
serial number start serial number.
Case requires repeated processing sequence number from 0001 to 9999, therefore can specify 9999 for reset the
serial number, after when processing the 9999 serial number, text will automatically change to 0001
[Enable prefix ZERO]: without enabling leading zeros, then the system will automatically remove the serial
number of the first nonzero Numbers in front of zero. As the serial number of the case, if there is no can make
leading zeros that ABC0001DEF will become ABC1DEF. But it is worth noting that if we want to output the
sequence number is ABC1DEF, ABC2DEF until ABC9999DEF, we cannot pass will be set to start serial number 1,
